Sunnan Synth. The solar powered strobe-opto-theremin-synth-thing. Made with an ikea sunnan solar lamp, photoresistors, pots and a cmos 556 ic.

For every sold lamp, another one will be doneted to UNICEF.

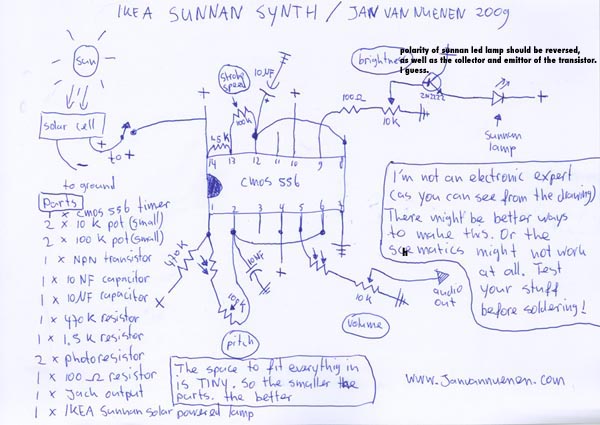

Schematics:

Correction: polarity of sunnan led lamp should be reversed. - ----|<---- + , as well as the collector and emittor of the transistor. I guess.

Large

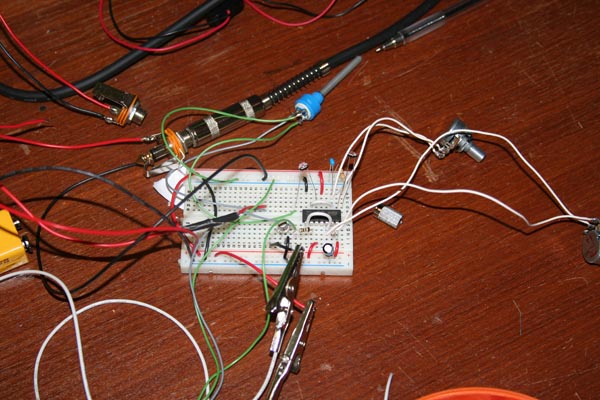

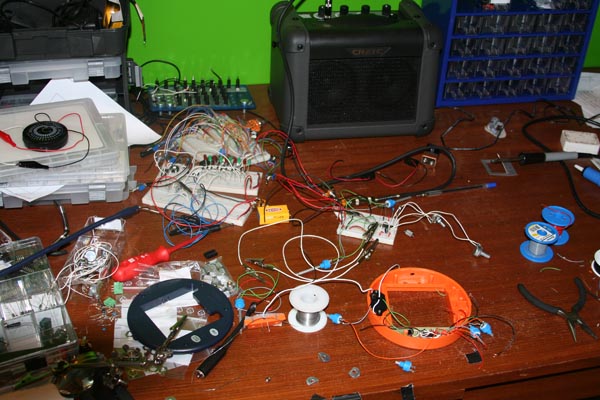

Testing:

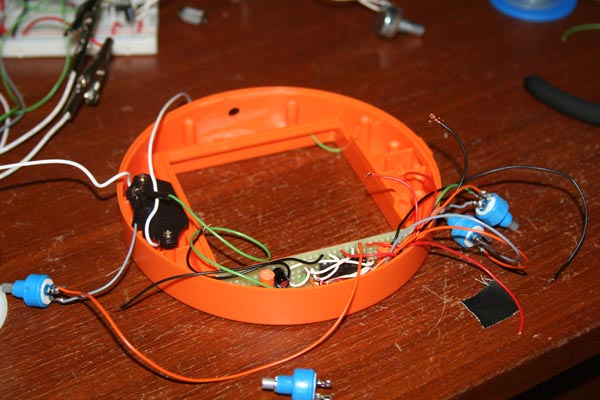

Trying to fit everything into a tiny tiny space:

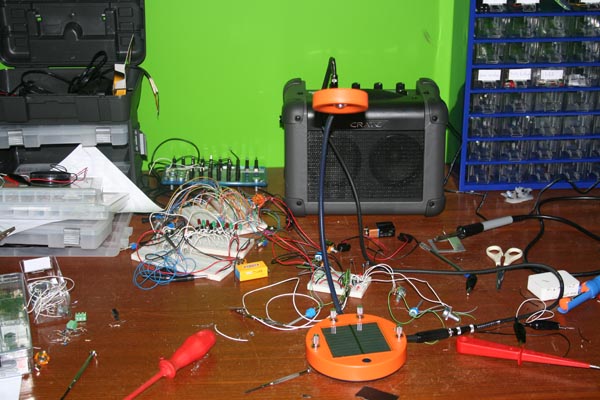

Some unfinished projects in the background:

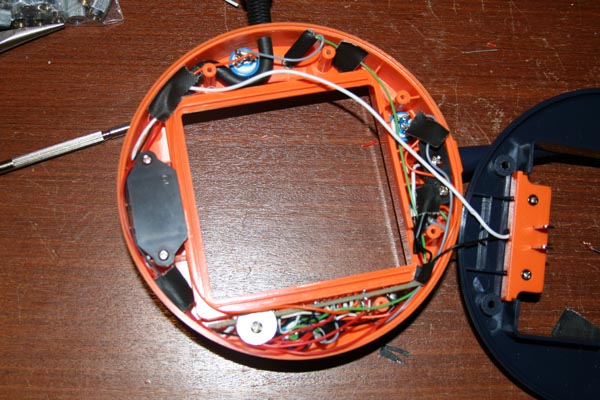

Everything fits:

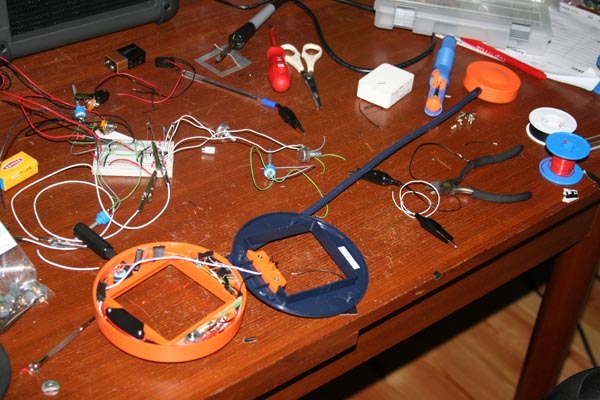

Trying to get everything back together:

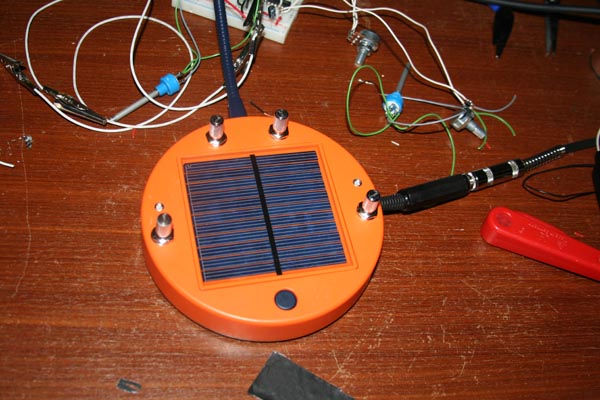

Finished:



Finished:

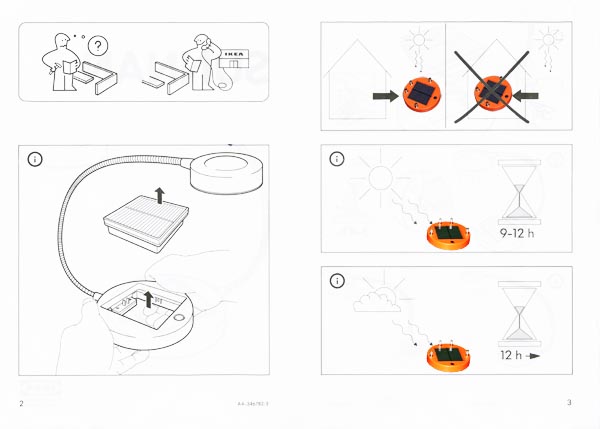

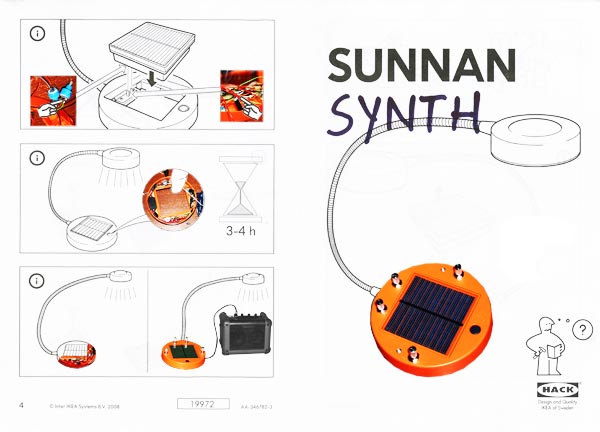

Manual:
